Importance Of A Proper Tuned Antenna

A properly tuned antenna has a standing wave ratio (SWR) that matches the frequency you’re operating on.

Understanding SWR and Antennas: Why Matching Frequency Matters

Standing Wave Ratio (SWR) is one of those topics every radio operator eventually gets cozy with — usually right after realizing their signal isn’t getting out as far as it should. In simple terms, SWR measures how efficiently your transmitter’s power is being delivered to your antenna. The closer the match between your antenna and the transmission line, the more power gets radiated instead of reflected back into your rig.

What SWR Actually Means

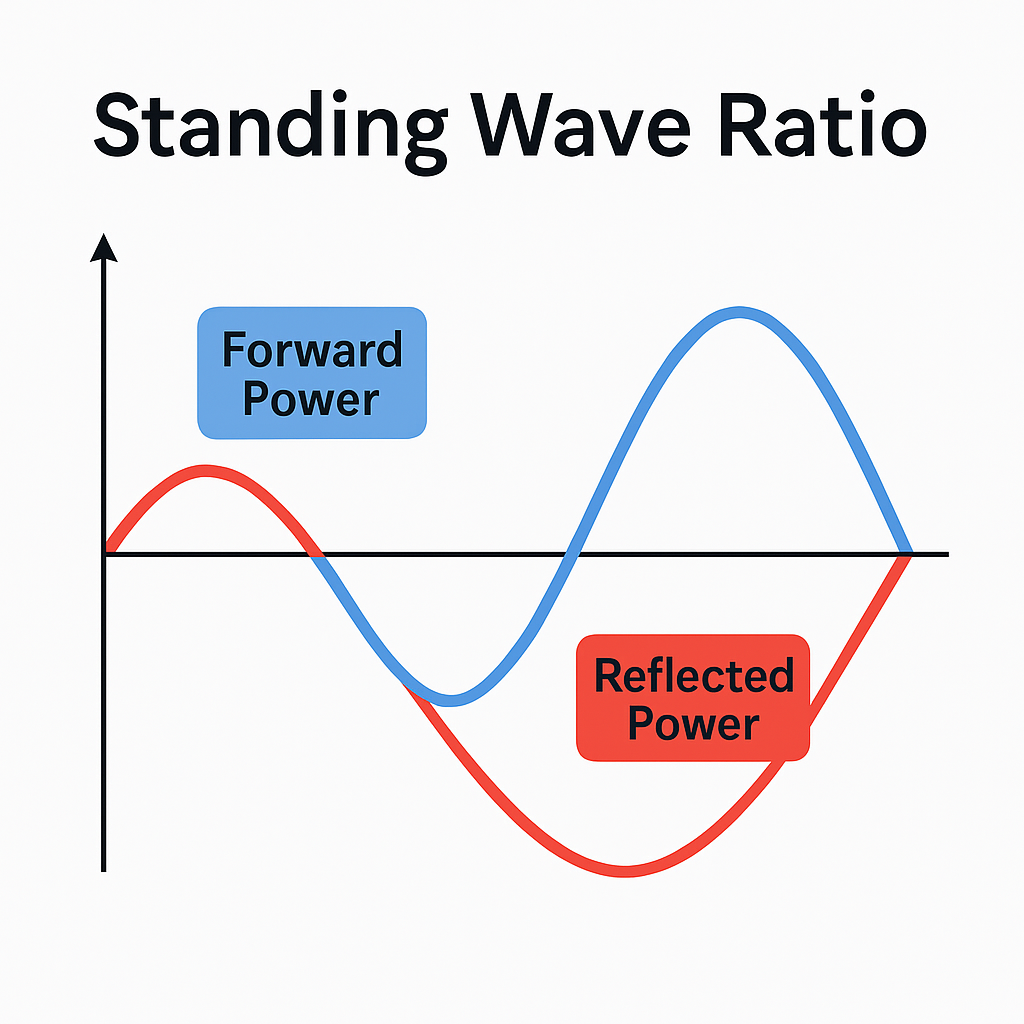

SWR (often expressed as a ratio like 1.5:1 or 3:1) describes the relationship between forward power (the energy heading out to the antenna) and reflected power (the energy bouncing back). A perfect match would be 1:1 — meaning every watt your transmitter sends is radiated. A reading of 2:1 means some power is being reflected, and higher ratios indicate progressively worse mismatches.

Why does that matter? Because reflected power doesn’t just waste energy; it can also stress or even damage your transmitter’s final stage, especially in solid-state rigs that lack the ruggedness of old tube equipment.

The Role of Antenna Resonance

Every antenna is naturally resonant at certain frequencies — where its electrical length matches the wavelength of the signal. If you try to transmit on a frequency too far from that sweet spot, the impedance of the antenna changes, and the mismatch grows. That’s when your SWR meter starts to climb.

Think of it like trying to play a violin string that’s tuned too loose or too tight — the note won’t ring true. Likewise, your antenna won’t “sing” properly unless it’s cut (or tuned) to resonate where you need it to.

Why the Right Antenna Matters

The “right” antenna for a given frequency range ensures maximum efficiency, cleaner signal transmission, and less strain on your gear. Using a 10-meter antenna on 40 meters without a tuner, for example, will result in a very high SWR — most of your transmitter’s power will be reflected instead of radiated.

Good operators select or tune their antennas to the intended band, often using adjustable elements, traps, or matching networks to keep SWR low across their operating range.

Tools of the Trade

A simple analog or digital SWR meter is invaluable. Even better, an antenna analyzer lets you visualize impedance, reactance, and resonance points so you can trim or tune your antenna precisely.

For portable or experimental setups — like field day operations or homemade dipoles — checking SWR after setup is essential. Small environmental changes like ground moisture, nearby metal objects, or even the height above ground can shift resonance.

The Takeaway

SWR isn’t just a number on a meter — it’s the health indicator of your entire RF system. Keep it as close to 1:1 as practical, make sure your antenna is resonant at your operating frequency, and your signal will travel farther, cleaner, and with fewer headaches.

When you’re riding and mostly using FRS/GMRS channels on the trail, the Nagoya NA771G is the antenna you want. It gives you the best possible performance and efficiency for back-country use, where every bit of signal matters. Just keep in mind that this antenna isn’t optimized for resource-road frequencies — but since most riders only use those channels about 10% of the time, it’s a worthwhile trade-off.

After all, the best transmitter in the world is only as good as the antenna it feeds.
